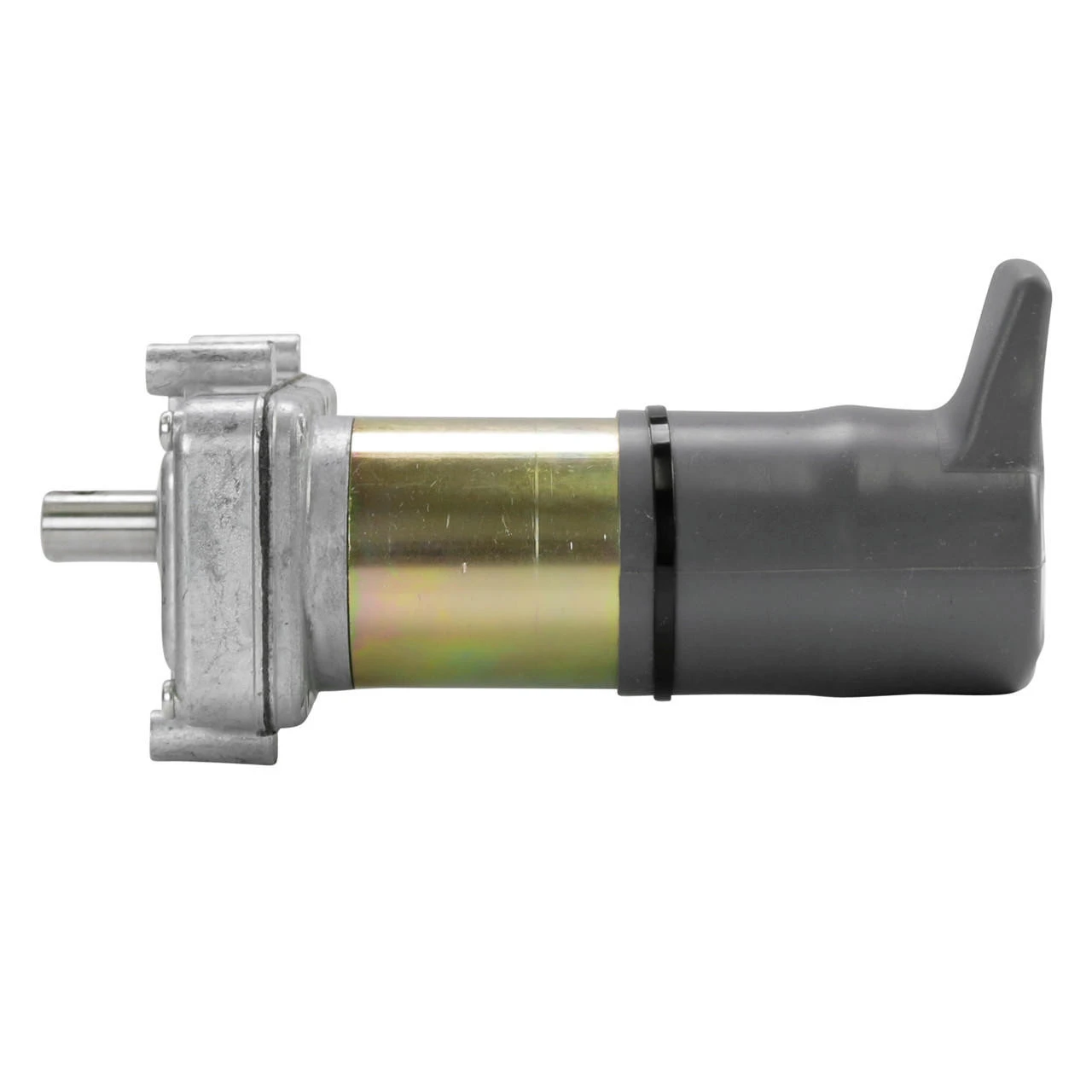

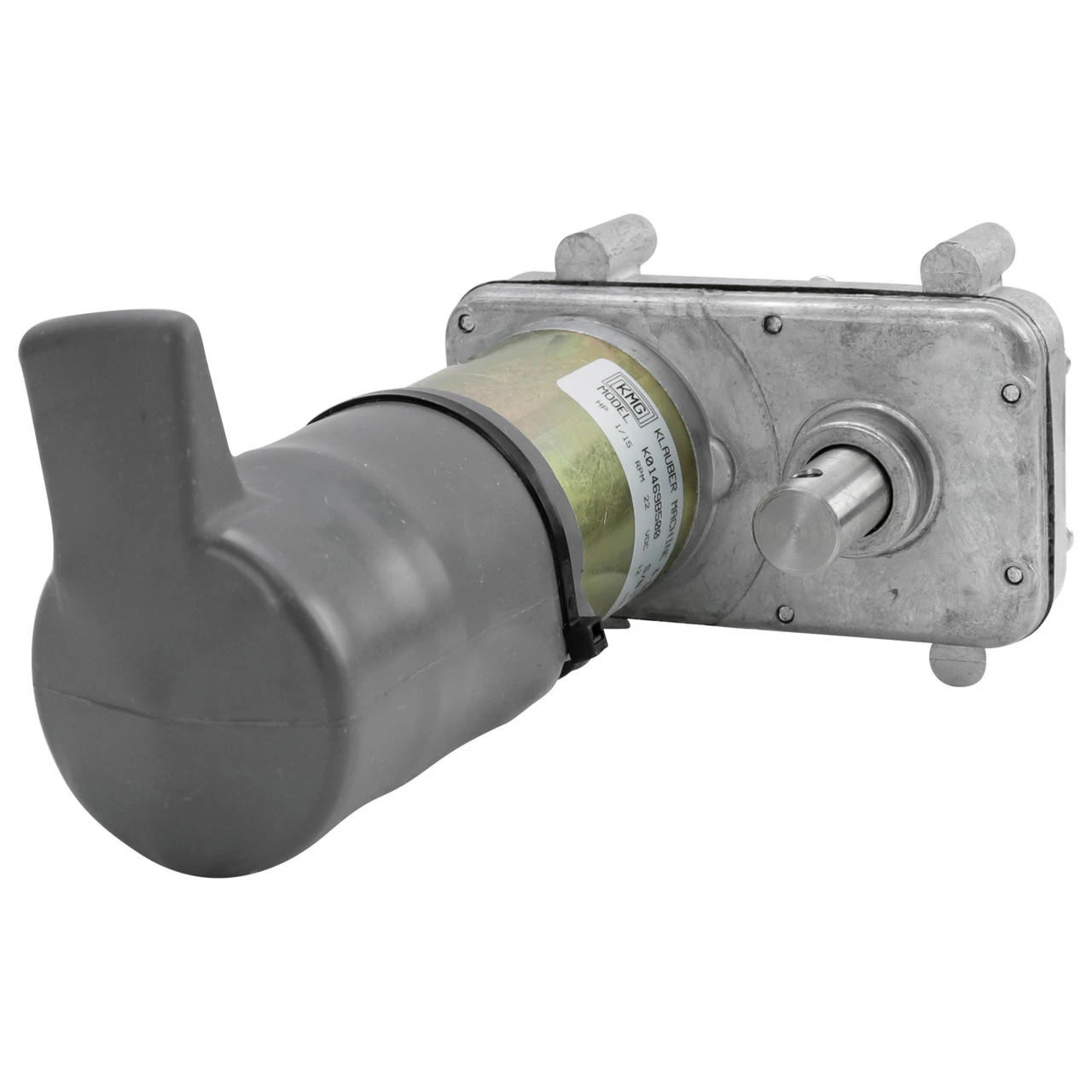

RV Slide Out Motor K01469-B500 Replacement For K01265C500,Klauber Motor Replacing K01265C500, 520430, K01265A500
Original price was: $326.00.$97.99Current price is: $97.99.
- There are quality problems, free return and exchange
- Uncompromising quality, every time.
- Quality products for every lifestyle.
- Shop the Best Quality Online

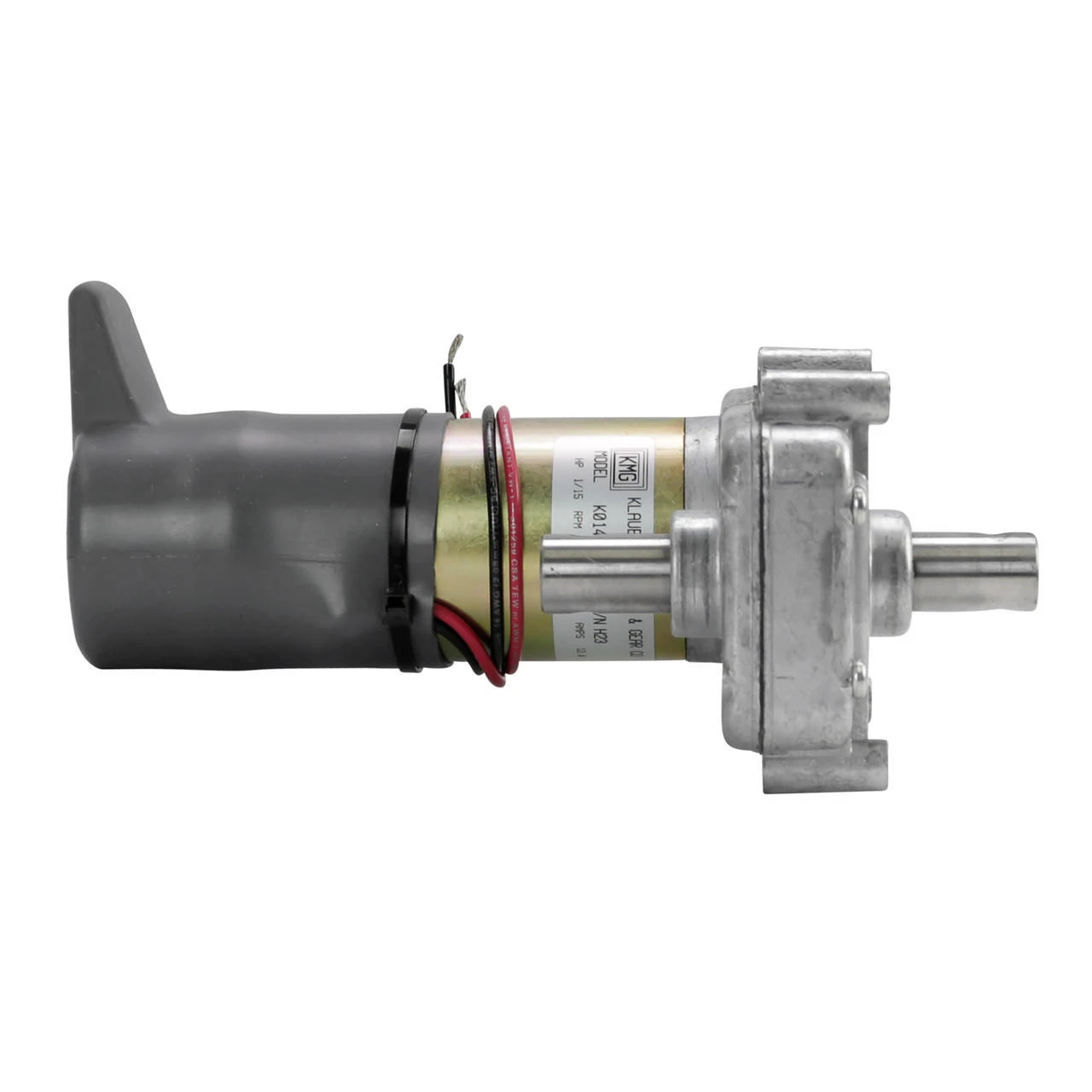

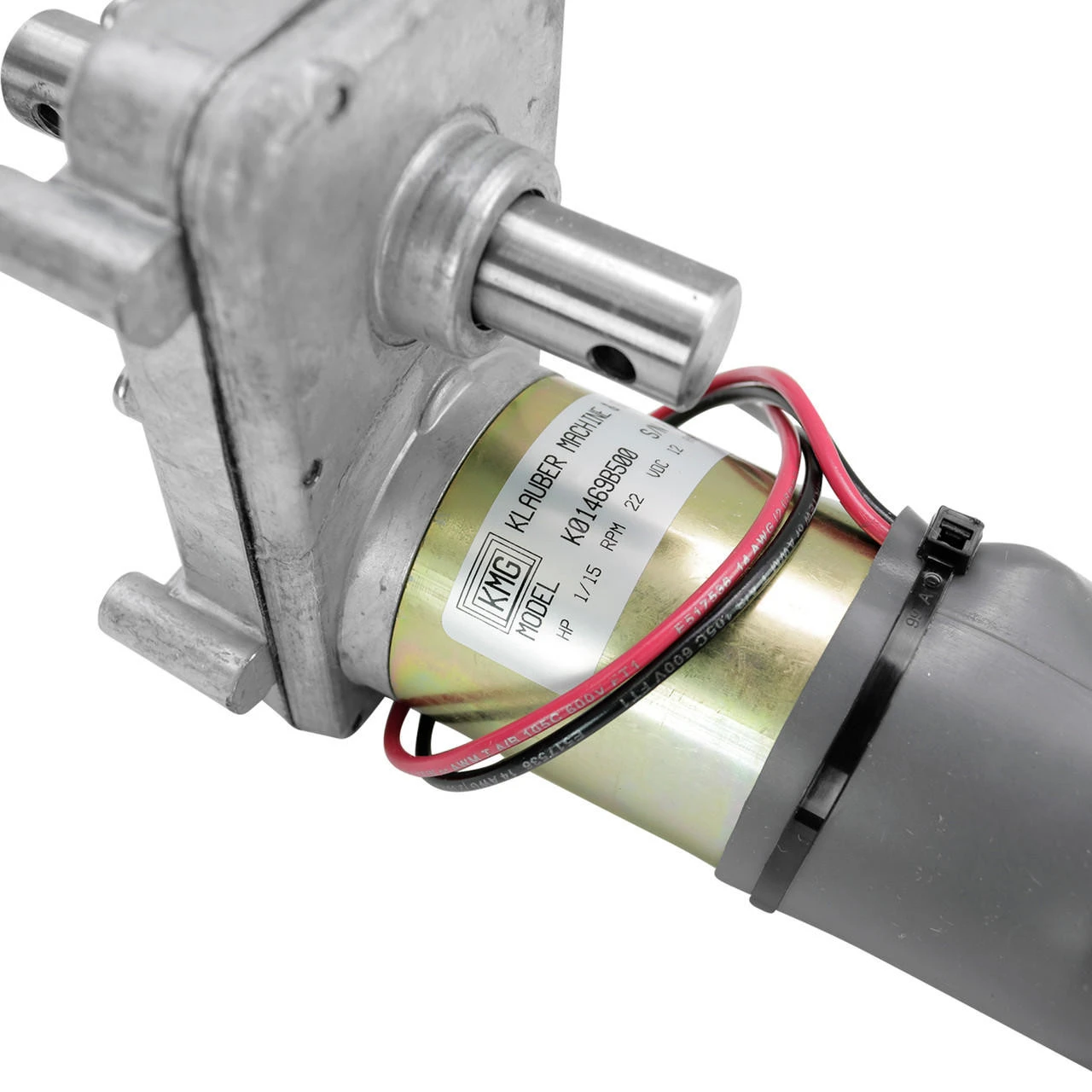

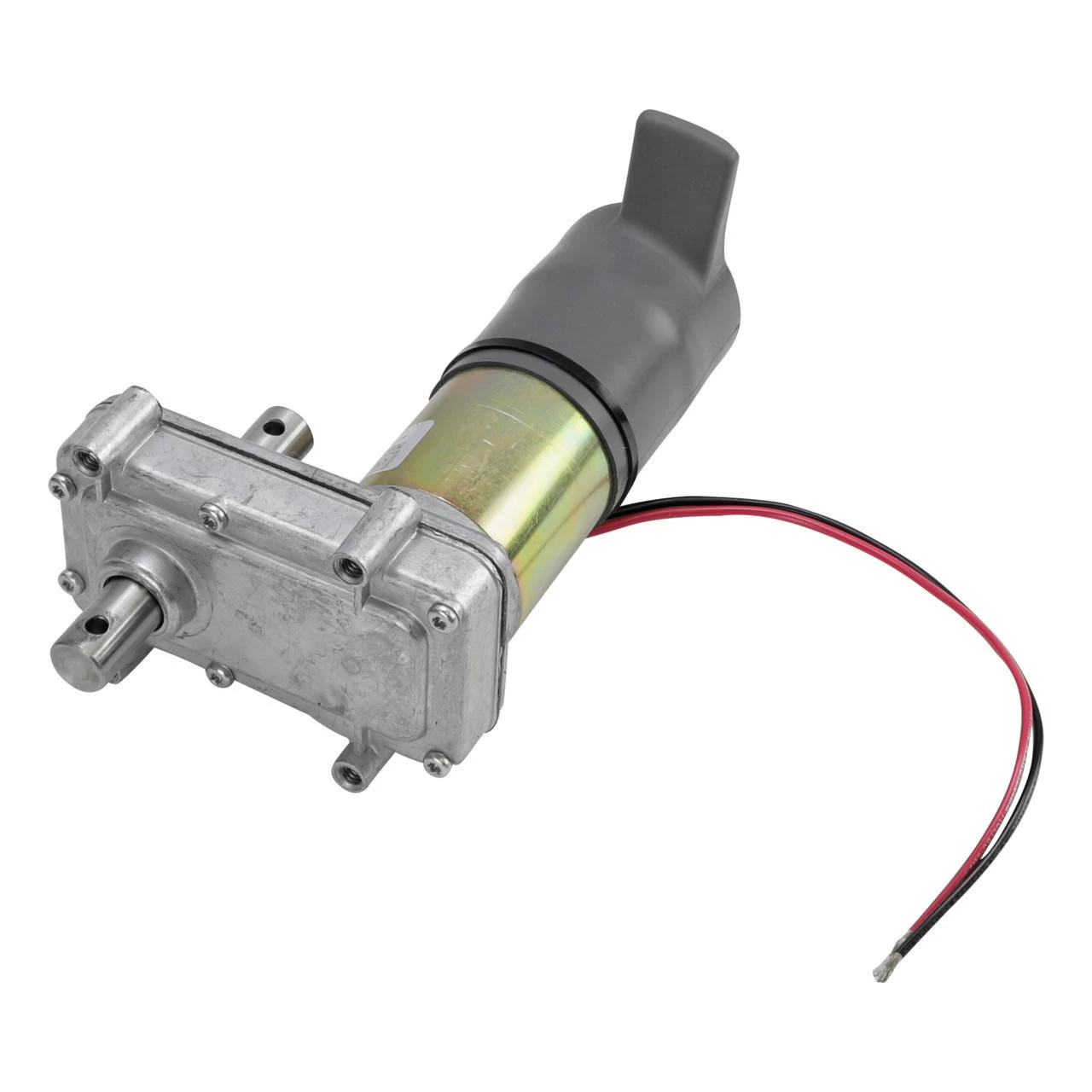

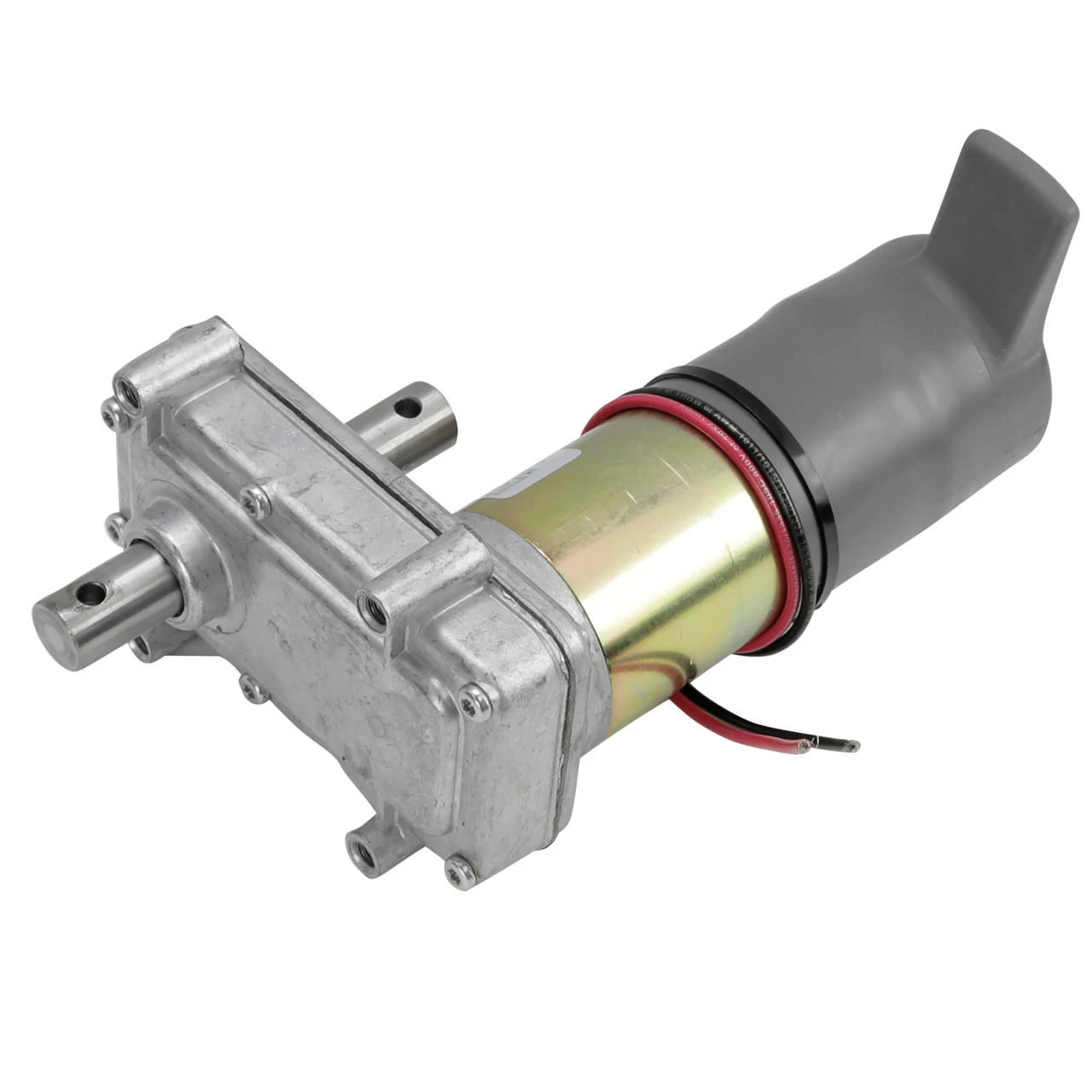

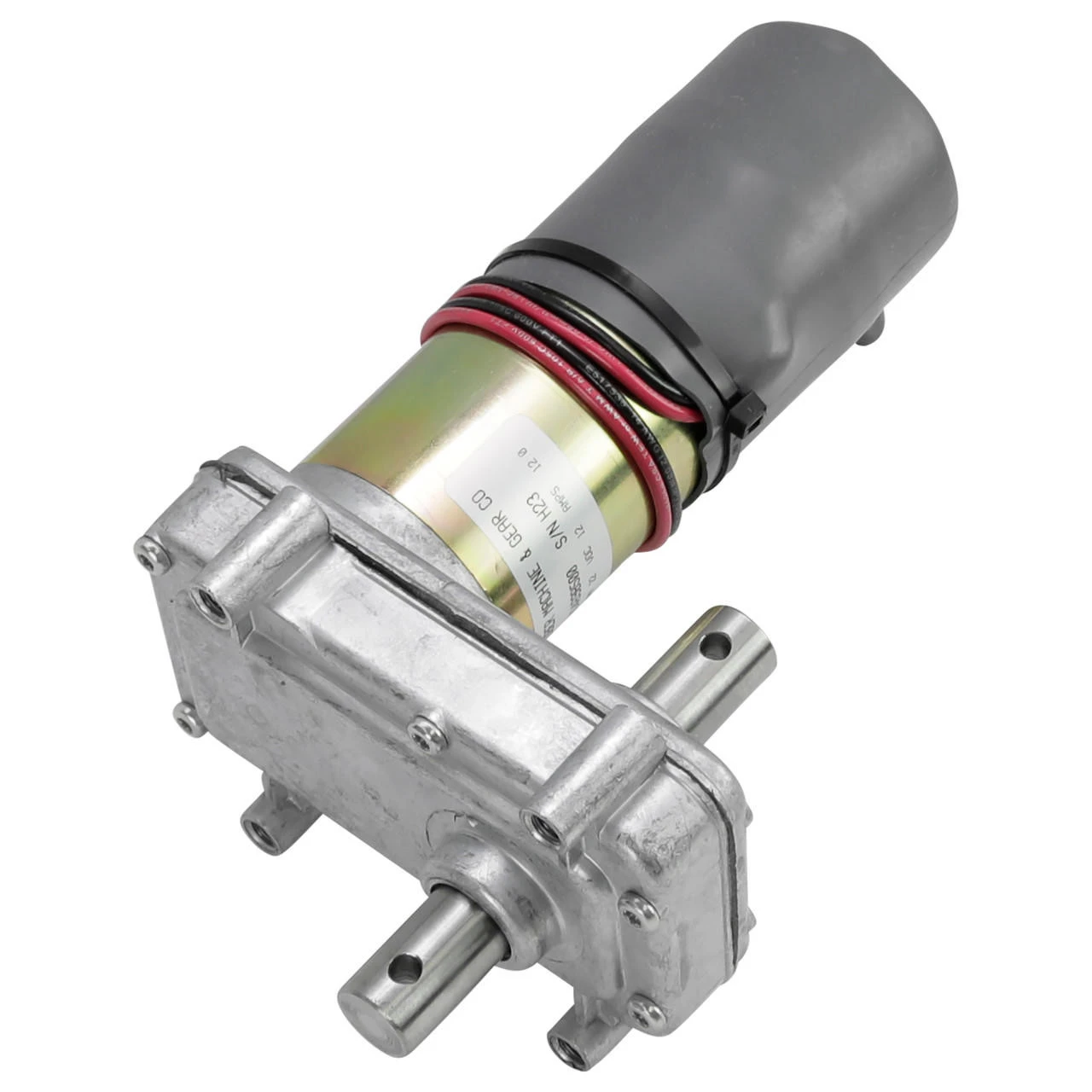

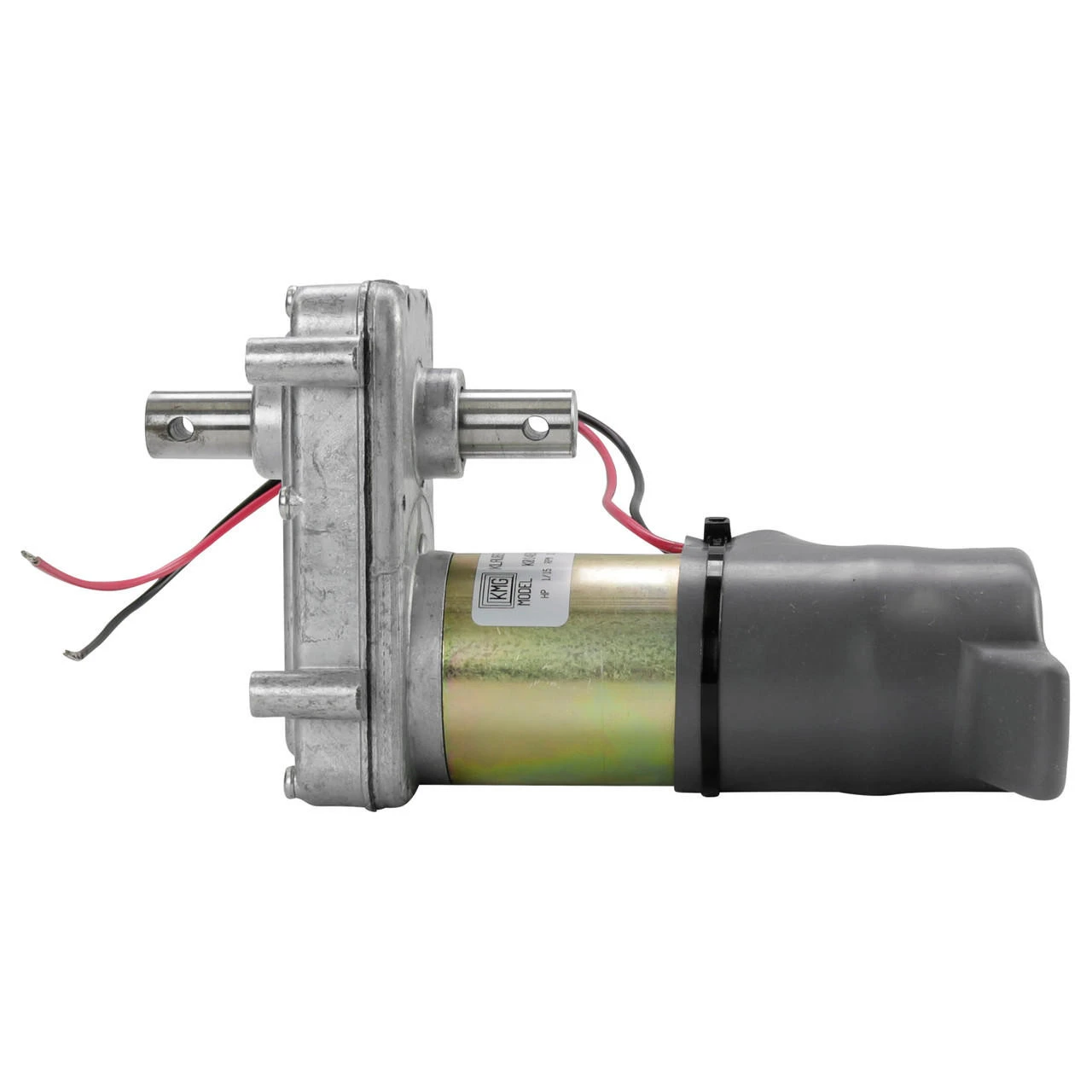

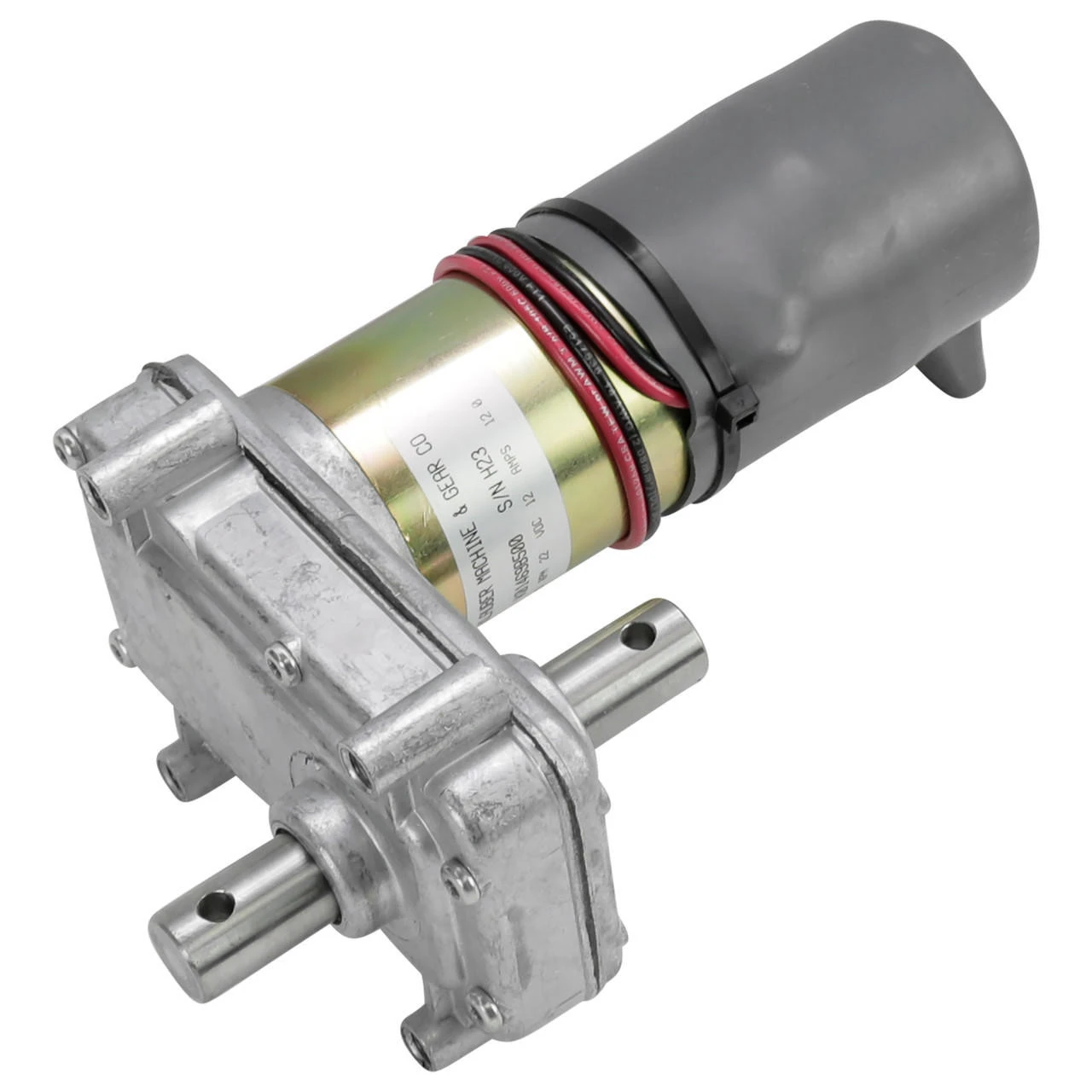

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor with manual release lever.
SPECIFICATIONS
- 22 RPM
- Voltage 12 DC
- Run Torque 250 in-lbs
- 131:1 Gear Ratio
- 12 Amp
- Rotation Reversible
- Duty Intermittent
- Enclosure TENV

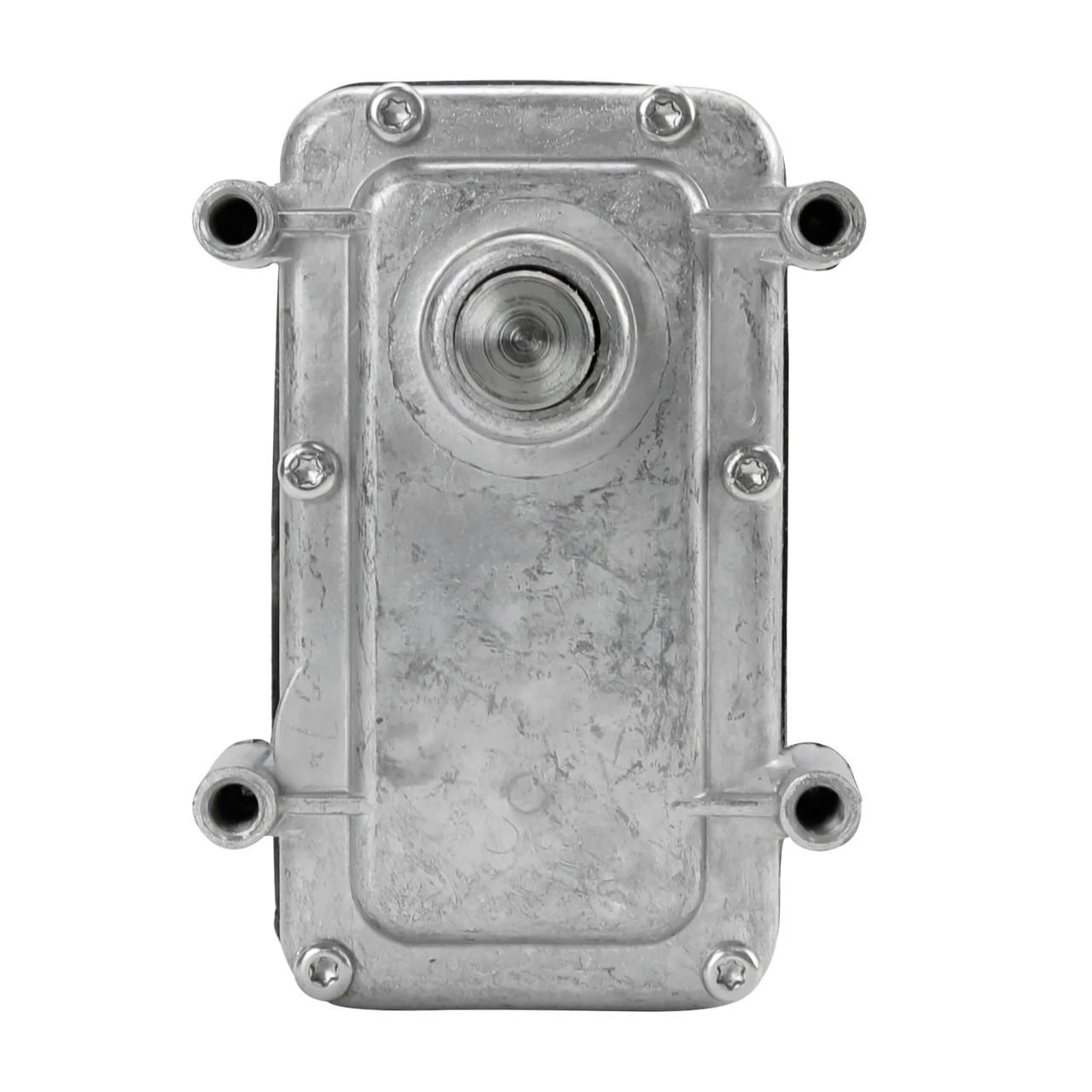

- Mount Four bolt face mount on 3.38″ x 3.38″centers
- Dual Shafts 3/4″ diam. x 1-1/4″ with 1/4″ crosshole (no keyway)
CROSS REFERENCES: K01265C500, K01265N500, K01265C500EB, K01265N500EB, 520430, K01265A500, 383755, 522916
ALSO REPLACES: K01250A500 motor will have a manual brake release this does not affect the functionality or performance. K01348D500 Output shaft is 0.5″ shorter than the D500 however, all specs do match.
Electric Motors may be returned if authorized by Leisure CoachWorks and must be unused/not installed. Accepted returns are subject to a 20% restocking fee
| SKU | X7X5I |
|---|---|
| Width | 6.50 (in) |
| Height | 10.00 (in) |
| Depth | 4.25 (in) |
